Few things concern homeowners more than discovering water stains on the ceiling after running their evaporative air conditioner.
If you own a Bonaire evaporative cooler and have noticed water entering the ceiling space, it’s important to have the issue investigated as soon as possible.
While the leak may appear to be a roofing problem, the evaporative cooler itself is often the source of the water.
Fortunately, most Bonaire ceiling leak issues can be diagnosed and repaired before major damage occurs.
Is Water Supposed To Be Inside A Bonaire System?
Yes.
Bonaire evaporative air conditioners rely on water to cool incoming air.
Water is stored in the reservoir and pumped through the filter pads where the cooling process occurs.
Under normal conditions:
• Water remains inside the unit
• Excess water is managed correctly
• The drainage system operates properly
Water should never be entering the ceiling cavity below the unit.
If it is, there is likely a fault requiring attention.
Incorrect Water Bleed Valve Settings
One of the most common causes of Bonaire ceiling leaks is incorrect bleed valve settings.
The bleed valve helps manage water quality by allowing a controlled amount of water to leave the system.
If the bleed rate is incorrect:
• Water levels can become excessive
• Water movement inside the unit can increase
• Water carryover can occur
Incorrect settings can contribute to water entering areas where it shouldn’t.
This is one of the first things technicians will inspect during diagnosis.
Faulty Water Bleed Valves
Like any component, bleed valves can eventually fail.
Common issues include:
• Internal wear
• Blockages
• Sticking components
• Incorrect operation
When the bleed valve stops functioning correctly, water management inside the cooler can be compromised.
This can increase the likelihood of leaks and water carryover.

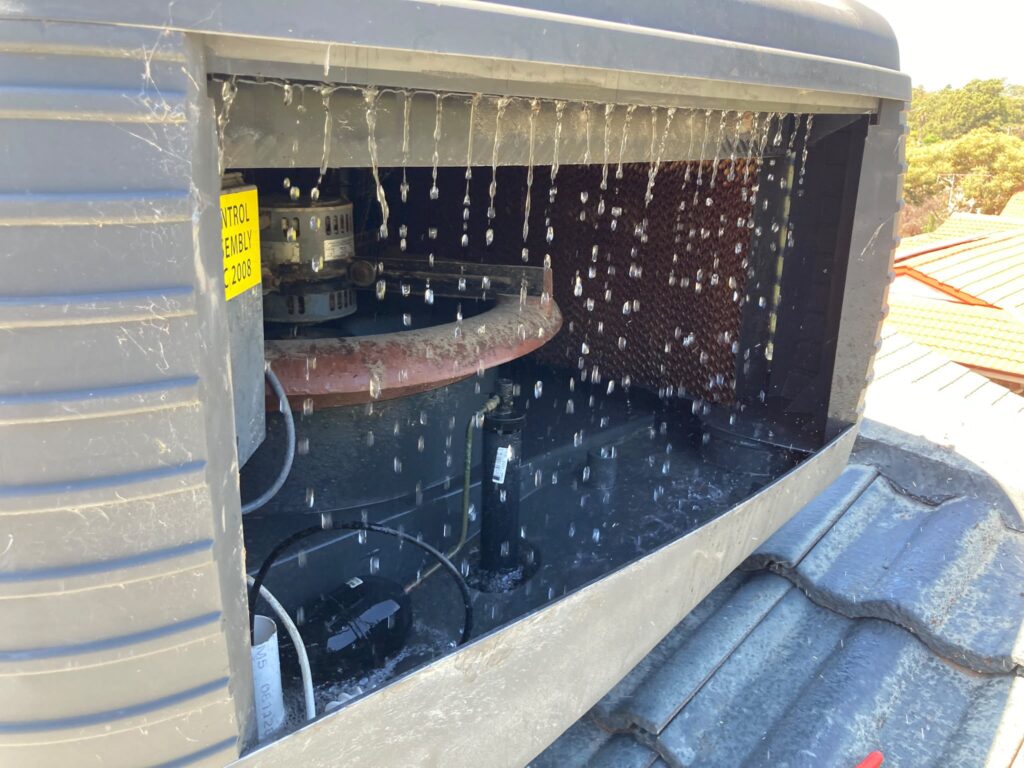

Water Carryover Problems
Water carryover is a problem occasionally seen in evaporative cooling systems.
This occurs when water droplets are picked up by the airflow and carried through the cooler.
Instead of remaining within the intended water management system, moisture can be transported:
• Across internal components
• Over the motor area
• Toward the dropper section
• Into ceiling spaces
In severe cases, water may travel down the dropper and appear as a ceiling leak inside the home.
Incorrect Pump Installation
Another issue sometimes encountered is the installation of the wrong pump.
If a pump delivers excessive water flow:
• Water distribution can become uneven
• Excess moisture may accumulate
• Water carryover becomes more likely
Ensuring the correct pump is fitted is an important part of maintaining proper operation.
Heavily Contaminated Filter Pads
Filter pads play a major role in managing water flow through the system.
When pads become heavily contaminated with:
• Scale
• Dirt
• Sludge
• Mineral deposits
water distribution can become uneven.
Poor pad condition can contribute to excessive moisture movement within the unit and increase the risk of leaks.
Replacing worn filter pads often resolves these issues.
Blocked Drain Systems
The drain system removes excess water from the cooler.
If drains become blocked by:
• Dirt
• Scale
• Sludge
• Debris
water may not leave the system as intended.
Overflow conditions can develop and contribute to water entering roof spaces or ceilings.
Signs Your Bonaire May Be Leaking
Common warning signs include:
• Ceiling water stains
• Damp plasterboard
• Water marks near vents
• Dripping sounds
• Water appearing only when the cooler is running
If the symptoms only occur while the evaporative cooler is operating, the unit itself should be investigated.
Why Early Repairs Matter
Even small leaks can become expensive if left unresolved.
Water entering the ceiling space may eventually cause:
• Plaster damage
• Staining
• Insulation damage
• Timber deterioration
• Electrical risks
Addressing the problem early can help avoid larger repair costs.
What Happens During A Leak Inspection?
When investigating a Bonaire ceiling leak, technicians typically inspect:
• Bleed valve operation
• Water levels
• Pump performance
• Filter pad condition
• Drain systems
• Water distribution
• Signs of water carryover
This allows the source of the leak to be accurately identified.
